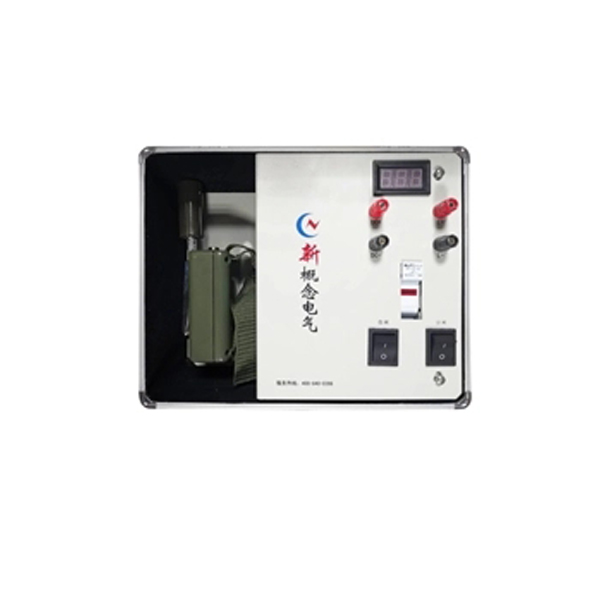

FH series permanent magnet mechanism switch portable operation box

The operational energy of the permanent magnet actuator is provided by the stora...


Download as PDF

Product Description

The operational energy of the permanent magnet actuator is provided by the storage capacitor. The permanent magnet mechanism switch portable operation box enables closing or hierarchical operation of the permanent magnet switch when the secondary control system fault is faulty in the permanent magnet mechanism switch. The portable operating case is small, light, beautiful, easy to carry, less components, high reliability. The battery can be used as a backup power supply or a hand-shaker as a backup power supply, the portable operation box is that the power supply sector improves the supply of the power supply to operate the permanent magnet switch must match the tool.

The main technical parameters

Serial numberprojectHand-shakerBattery-type portable box
1Input voltageAC 0 ~ 220VAC220V
2Operating voltageDC110V / DC220V / DC380V (± 10%)
3Working voltage (battery)/DC12V / DC24V
4Closing maximum output current<120a
5Maximum output current<120a
6Enter voltage-DC12V / DC24V (± 10%)
7Closing delay-0 ~ 1000 ms (can be set)
8Divergence-0 ~ 1000 ms (can be set)

Machine power consumption (static)-<5W

Note: Technical parameters exceed the scope of the previous table, please contact us

Features

Compatible Single Double Steady Permanent Magnet Agency Switch.
After the permanent magnet drive loop is faulty, the permanent magnetic circuit breaker is replaced by the controller.
Small size, light weight, can be carried with it.
Safe reliability, self-contained capacitor discharge circuit, to achieve rapid capacitance, improve capacitive safety, extend capacitive life
Operating coil abnormal detection functions, with coil ports, coil abnormal detection can be performed by multimeter.

Note: Technical parameters exceed the scope of the previous table, please contact us
