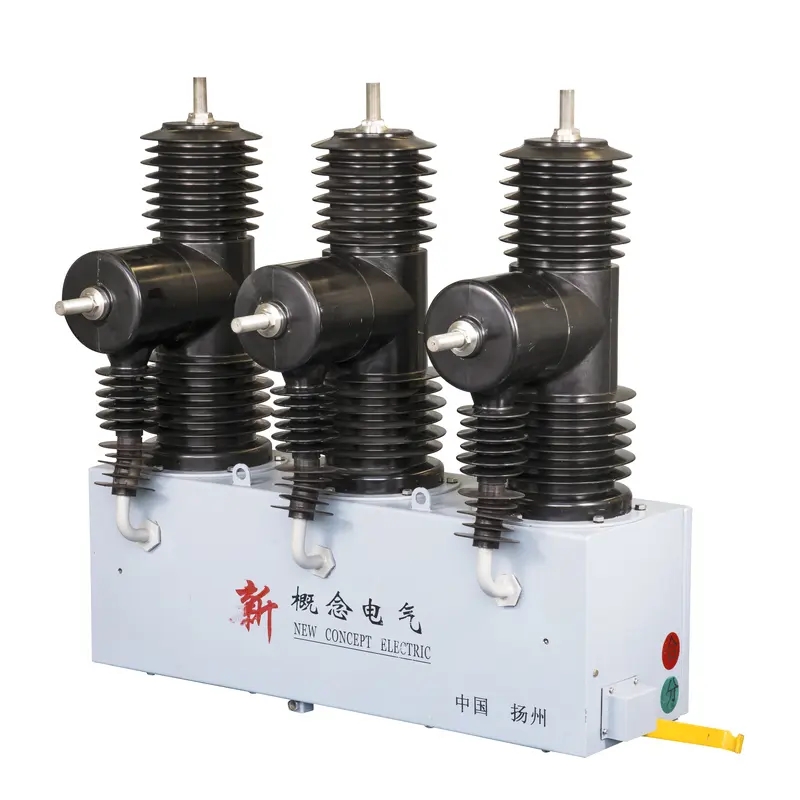

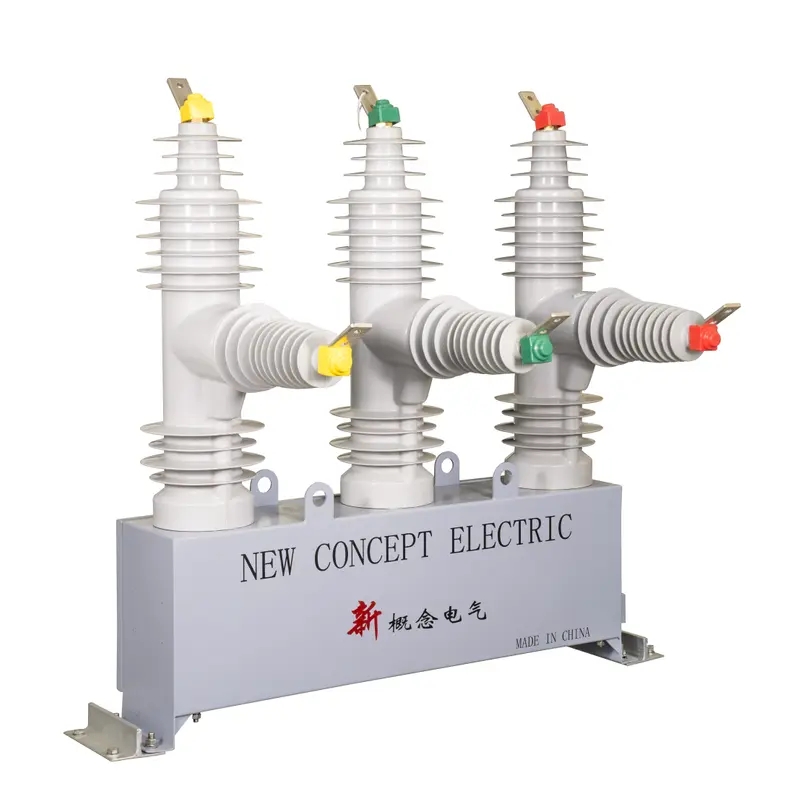

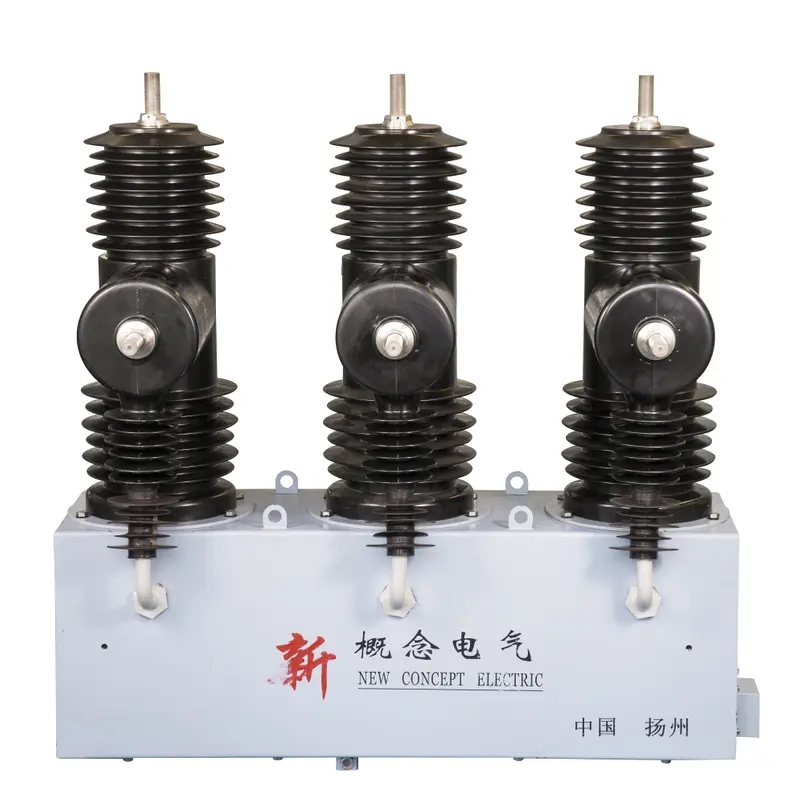

AB-3S-40.5 outdoor intelligent high pressure permanent magnet vacuum transducer
The AB-3S series transducer is the new generation of intelligent vacuum transducer with independent intellectual property rights. This is the actual situation of domestic, international advanced technology integration, China power distribution system and intelligent power supply requirements. It reflects our design philosophy, intelligence, energy saving, environmental protection, maintenance-free. This product is widely used in many substations and power distribution networks in China. It integrates measurement, control, protection, communication, fault location, network reorganization, which is in the end user and popular features. It is fully automated, highly intelligent, which makes itself the preferred automation and miniaturization of small-sized substation.
| Rated voltage | KV | 40.5 | ||||
| Rated current | A | 1250/1600/2000 | ||||
| CT parameters | Customized according to customer requirements | |||||
| Rated frequency | Hz | 50 | ||||
| Rated short (1min) power frequency tolerance voltage (on ground / broken) | KV | 95 | ||||
| Rated lightning impact tolerance voltage (on ground / broken) | KV | 185 | ||||
| Rated short circuit opening current | ka | 25 / 31.5 | ||||
| Rated short-circuitry current (peak) | ka | 63/80 | ||||
| Rated short-term resistance (4S) | ka | 25 / 31.5 | ||||
| Rated peak tolerance | ka | 63/80 | ||||
| Rated short-circuit current break | 次 | 20 | ||||
| Operating agency | Permanent magnet | |||||
| Vacuum circuit breaker mechanical life | 次 | 1000 (30000) | ||||
| Enclosure rating | IP65 (IP67) | |||||
Product function and characteristics
The main function:
- Protection function: Automatic identification of fault current, fast breaking current, fast breakthrough time limited current, time-to-time, overcurrent orientation, overvoltage, undervoltage, single-phase protection in low current grounding system, cooling load operation Suppression and break
- Measurement function: Measure the three-phase current, 3-phase voltage, active power, reactive power, active energy, reactive power, peak / valley energy, power factor and frequency, etc.
- Control function: Local and long-distance remote control, automatically restore the fault location, isolation failure, and quickly restore the non-fault line power supply, and the load is automatically detached, the capacitor automatic switch, the backup power supply automatic switch, etc.
-Intelligentization function: Comprehensively analyze the performance characteristics of online meter parameters, circuit breakers, and network programs when cooperation with power transmission automation system, and implement remote control and management of switching equipment, realizing on-site, remote or hierarchical control power Assign an automation system function.
- Data Recording Function: Reserve the latest 256 data records, operations, and fault information.
Optional function:
- The dedicated remote control can optionally be selected to achieve remote control, cutting and recovery power, no need to climb to the rod.
-Backup power automatic control cabinet can optionally be automatically switched between dual power lines.
- The high voltage isolation of integrated design can optionally be selected to make the structure compact, easy to install and maintain.
-Super capacitor or battery (lead acid or lithium battery) can optionally select for backup power sources.
- Fault waveform recording function can be implemented to maintain up to 50 data records.
- Automatic re-off function can optionally be selected.
-GSM mobile SMS function can optionally select the motion information of the s
